Association between localized geohazards in West Texas and human activities, recognized by Sentinel-1A/B satellite radar imagery
Abstract
West Texas’ Permian Basin, consisting of ancient marine rocks, is underlain by water-soluble rocks and multiple oil-rich formations. In the region that is densely populated with oil producing facilities, many localized geohazards, such as ground subsidence and micro-earthquakes, have gone unnoticed. Here we identify the localized geohazards in West Texas, using the satellite radar interferometry from newly launched radar satellites that provide radar images freely to public for the first time, and probe the causal mechanisms of ground deformation, encompassing oil/gas production activities and subsurface geological characteristics. Based on our observations and analyses, human activities of fluid (saltwater, CO2) injection for stimulation of hydrocarbon production, salt dissolution in abandoned oil facilities, and hydrocarbon extraction each have negative impacts on the ground surface and infrastructures, including possible induced seismicity. Proactive continuous and detailed monitoring of ground deformation from space over the currently operating and the previously operated oil/gas production facilities, as demonstrated by this research, is essential to securing the safety of humanity, preserving property, and sustaining the growth of the hydrocarbon production industry.
Introduction
Geohazards pose a severe threat to humanity, civilian properties, infrastructures, and industries, possibly leading to the loss of life and high economic values1. Monitoring areas prone to geohazards is invaluable for locating their precursory signals on the surface, alerting civilians to potential disasters, mitigating the catastrophic outcomes, and facilitating the decision-making processes on the construction and operation of infrastructures and industrial facilities. The United States mid-continent has long been considered geologically stable with no large scale tectonic movements, volcanism, or seismic activities2,3. Therefore, unlike California with its dense GPS networks and frequent survey (aerial, spaceborne, field) campaigns, the mid-continent has garnered less attention from scientific communities and federal/state governments. However, recent studies have revealed that some of the mid-continent, especially the Gulf Coast of the United States including Texas, Louisiana, and Mississippi, is not immune to large-scale and/or localized geohazards4,5.
The geohazards along the southern United States have been both naturally induced and stimulated by human activities1,3. Besides the occasional, strong tropical storms and flooding in lowlands, natural geohazards include settlement due to sediment loading and glacial isostatic adjustment, which can make the coastline in the Gulf Coast vulnerable to sea-level changes6,7,8. However, the naturally occurring surface subsidence on the coast displays characteristics of a continuous, slow progression (millimeters per year) and a large spatial extent (~100 km wide)6. In contrast, human-induced geohazards are faster growing (up to tens of cm/yr) and encompass a varying but generally small area (up to a couple of km wide). The most prominent difference between natural and human-induced geohazards is the correlation between surface instability and anthropogenic activities (e.g., mining, groundwater extraction, hydrocarbon production)3,9. Although there can be a time delay of ground deformation after human activities, depending on the geological characteristics (porosity, elasticity, compressibility, pore pressure, permeability) of soils and rocks and types of the operations, human-induced surface subsidence or uplift usually has high proximal and temporal correlation with those activities10,11,12.
West Texas is somewhat distant from the Gulf coast, but was inundated by relatively shallow seas during the early part of the Paleozoic Era (approximately 600 to 350 million years ago). The sediments formed during this period contributed to the accumulation of sandstone, shale, and limestone. The seas constituting broad marine environments in West Texas gradually withdrew, and by the Permian Period (approximately 299 to 251 million years ago), thick evaporites (salt, gypsum) accumulated in a hot arid land encompassing shallow basins and wide tidal flats. As a consequence of geological formation in West Texas, the deposited carbonate (reef limestone) and marine evaporite sequences played an important role in the formation of oil reservoirs by helping seal the traps and preserving the hydrocarbons13. This resulted in the Permian Basin of West Texas’ massive hydrocarbon reservoirs that became so lucrative to the oil and gas industry14.
In West Texas, human activities such as groundwater exploitation, fluid injection, and hydrocarbon extraction have resulted in surface instability, leading to geohazards such as surface heave/subsidence, fault reactivation4, induced seismicity15,16, and sinkhole formation17,18,19. The vastness of West Texas challenges our ability to identify and locate the relatively small spatial scale of the deformation corresponding to human activities, particularly for fluctuations over the course of a month or a year. Without concerted focus, the small-sized signal in a short time window can go easily undetected. There have been a few studies documenting the surge of surface uplift/subsidence, sinkhole formations, and induced seismicity in oil fields19,20,21,22. However, the role of human activities on the surface and subsurface deformation has yet to be fully established, particularly regarding the identification of small-scale deformation signals over a vast region from big datasets spanning multiple years and analyzing them with supplementary information.
Challenges to the effective study of the geohazards in West Texas include: identification of their locations in remote and vast regions, measurement of their long-term evolution, and characterization of the causal mechanism with accessible information. Satellite radar interferometry (InSAR) has proven capable of imaging ground surface deformation with a measurement accuracy of centimeters or better at a spatial resolution of meters or better over a large region covering tens of thousands km2,23. However, satellite radar acquisitions over West Texas have previously been scarce. Here we present the analysis of the ongoing ground deformations induced by various geohazards around Pecos, Monahans, Wink, and Kermit in West Texas (Fig. 1), using multi-temporal InSAR observations based on radar imagery from the first free, open-source radar satellites Sentinel-1A/B. The objective of our study is to probe the association between the ongoing localized geohazards in West Texas and anthropogenic activities. To achieve the goal, we focus on the localized, small-sized (200 m~2 km wide), and rapidly developing (cm/yr) geohazards in the region, which are categorized based on six possible causes: i) wastewater injection, ii) CO2 injection for enhanced oil recovery (EOR), iii) salt/limestone dissolution, iv) freshwater impoundment in abandoned wells, v) sinkhole formation in salt beds, and vi) hydrocarbon production. In addition, time-series measurements from two different imaging geometries are integrated to decipher the deformation phenomena. Furthermore, through comparative analysis of records of fluid injection, hydrocarbon production, and geological characteristics, we establish the relationship between the possible causes of human activities or natural perturbation and the localized observed geohazards in West Texas.
Results
Here we report local geohazards occurring in West Texas, most of which have not been noticed and reported yet. Knowledge of the presence of the ongoing geohazards in West Texas is a precursor to understanding the trigger and causality of ground deformation, the revelation of which is a focal point of our study. The localized geohazards presented below may have different characteristics in spatio-temporal progression and causality (i.e. wastewater injection, CO2 flooding, hydraulic fracturing, freshwater impoundment), but all are happening because West Texas contains a sequence of water-soluble (limestone, evaporite) and shale formations that are highly vulnerable to human activities.
Wastewater injection into formation and surface uplift
Wastewater ‘flowback fluid’, a byproduct of oil and gas production24, has been injected deep underground about 15 km west of Wink and Kermit, Texas (Fig. 1). The hydrocarbon production in the Bone Springs reservoir requires hydraulic fracturing, and wastewater (also called brine) containing high concentrations of total dissolved solids (TDS) is produced as a result of the operations. Two wells (API No. 49533675 and 49530150 in Fig. 2a) located near the county border between Winkler and Loving counties are classified as Class II injection wells for disposal of saltwater and non-hazardous fluids into the subsurface as a result of oil and gas production. The injection depth is from 1,590 to 1,670 m where the Bell Canyon Formation in the Delaware Basin of the larger Permian Basin lies. The upper layer (~10 m thick) of the formation is composed of limestone that can confine the upward flow of injected fluids. Most wastewater is injected below the nearly impervious limestone units, into the Bell Canyon Formation sandstones (also called Ramsey sandstones); these sandstones have a porosity of ~20% of open pore-space for holding fluids, and a moderate-to-low permeability (a measure of how readily fluids can flow through the rock) of ~40 md (millidarcy)25. Our InSAR analysis has detected the surface upheaval approximately centered on the injection well No. 49533675 (Fig. 2a). The maximum (cumulative) uplift from late 2014 to April 2017 was ~5.5 cm with the shape of a distorted ellipse, and the influential zone is within a 2 km radius of the peak deformation (white dot labeled ‘point A’). Horizontal (east-west) deformation with the maximum of ~1.2 cm is also occurring on both the east and west sides of the peak uplift (inset in Fig. 2a), with the western region moving to the west (negative, blue color) and the eastern region moving to the east (positive, red color). The horizontal deformation around the injection wells represents <~20% of the vertical (up-down) deformation; we therefore concentrate on the vertical deformation in this study.
Generally, surface uplift can be caused by the expansion of the geological formation where the fluid is injected, resulting in the upward movement of the ground surface. The injected formation experiences an increase in pore pressure as well as a decrease of the effective stress26, promoting the surface uplift as we observed27. At the point of maximum uplift (A in Fig. 2a), uplift was detected beginning around September 2015, with a sharp increase (at a rate of ~6 cm/yr) during the first half of 2016 (Fig. 2b), and the value after October 2016 sustained near ~5 cm cumulative deformation in spite of some monthly fluctuations. The temporal changes in uplift seem to be in concert with the changes in injection volume, suggesting that a mechanical compaction of sands by means of poroelasticity is likely the primary cause of the deformation28. In addition, the small variations in the vertical deformation since mid-2016 can be depicted as the combined effects of poroelastic compaction and viscoelastic behavior of fine-grained formations surrounding an injected strata28,29. We can also infer that, relatively speaking, the upper (sandy) layer responds rapidly to waste water injection, but the lower (shale/silt) formation reacts gradually to changes in overlying stress.

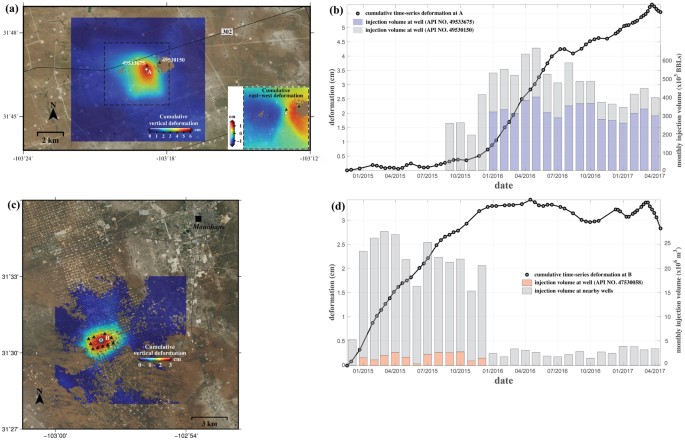

To unravel the causality of the surface uplift, we compared our deformation observations to the sequence of wastewater injection rates in the nearby wells. Based on the H-10 forms provided by the Texas Railroad Commission (RRC)24, the No. 49533675 injection well has been active since January 2016; the No. 49530150 injection well, which first became operational in 2009, experienced a period of disuse, and was then reactivated in September 2015 (Fig. 2b). The ratio of the uplift volume (i.e. the multiplication of the uplift amplitude and area extent) and the injection volume is about 0.05 m3/BBL (1 BBL ≈ 0.12 m3). Based on the onset of the uplift coinciding with the reactivation of 49530150 in September 2015, along with the increasing uplift rate aligning with the use of 49533675, it seems likely that both injection wells were affecting the surface uplift, but the effects of the two are not equivalent. It seems that the injection well No. 49533675, closest to the peak of vertical deformation, is likely situated in a geologically weak, critical formation, allowing the injection/disposal of wastewater to influence the surface deformation more dominantly. The correlation between the vertical deformation and the wastewater injection suggests that the expansion of injected formations induced a localized, relatively small-sized (~2 km in dimension), and small-magnitude (~5 cm) surface uplift. Although the onset of ground uplift was most likely triggered by the wastewater injection and the nearly instantaneous response of the ground surface results from the high elasticity of the underlying formations, the correlation between wastewater injection and ground surface may not be as high as we expect. The stratigraphic response to the decreased or increased pore pressure and effective stress can be a complicated process. When the injected volume is in decline, the release of relative pore pressure allows for the different response, namely immediate downward movement of coarse-grained formations and lagged upward movements of fine-grained formations. Such combined effects of the subsurface/surface processes result in retention of the intermediate correlation between the injection volume and ground uplift. The deformation has not invoked seismicity yet, but, if the injection continues, it has potential to threaten the integrity of County road 302, nearby oil/gas pipelines, and hydrocarbon production facilities.
Carbon dioxide (CO2) injection and surface uplift
Miscible CO2 flooding has been applied for decades as a tool for EOR in the depleted oil and gas reservoirs of the United States30,31. Unlike water and oil, supercritical fluid CO2 and oil mix together well, forming a single homogenous, or ‘miscible’, fluid (CO2 has different properties, depending upon its physical state; At room temperature, CO2 is a gas, such as what we exhale; we use liquid CO2 as a coolant, and we refer to the solid form of CO2 as “dry ice”. Supercritical CO2, achieved under specific pressure and temperature conditions, is between gas and a liquid state, with some properties of each). CO2 is injected into a disposal well within a reservoir after initial hydrocarbon production rates have declined, where the CO2 mixes with the hydrocarbons. The CO2 injection causes an increase in reservoir pressure, which forces the CO2-oil mixture out of the pores of the rock and towards one or more producing wells, allowing more oil to be recovered from the reservoir. CO2 injection for EOR has been economically efficient due to its low cost, aiding the Permian Basin’s EOR boom in the 1970s and 1980s and the recent years32,33.
The North Ward Estes Field west of Monahans, Texas and near Wickett, Texas is one of the largest cumulative oil-producing field in the Permian Basin34 (Fig. 2c). The oil and gas are produced from the Yates and Queen Formations, within the Midland Basin of the larger Permian Basin. In CO2 (Class II) injection wells 11 km southwest of Monahans, Texas (Fig. 1), the CO2 is injected into both formations at depths between 750 and 810 m. Crude oil and gas can be produced from both Yates and Queen formations, but Yates consists of very-fine-grained sandstones to siltstones separated by dense dolomite beds and contains ~16% of porosity and ~37 md of permeability, providing more dominant production volume in the North Ward Estes Field33. Salt water injection is also used for EOR (either ‘water flooding’ by itself, or in alternation with CO2 flooding), but its use today in this region is very limited (1% of total injected fluids) and most injection for EOR relies on the miscibility of anthropogenic CO2 (99% of the total injected fluids).
Our multi-temporal InSAR analysis has detected the ellipse-shaped surface uplift (major and minor axis: 6 km and 4 km, respectively) in the immediate vicinity of the CO2 injection sites (Fig. 2c), with a cumulative uplift of ~3 cm from late 2014 to April 2017. At the point of maximum uplift (B in Fig. 2c), the cumulative uplift increased linearly (at a rate of ~3 cm/yr) until January 2016 after which the value stayed at ~3 cm cumulative uplift (Fig. 2d).
Within 500 m of the maximum uplift, 11 CO2 injection wells (triangles in Fig. 2c) remain active as of April 2017. Although there has been variation in the injected volume (gray bars in Fig. 2d), most injections of CO2occurred during 2015, with much lower injection volumes (below 5 million m3) since January of 2016 (Fig. 2d). The API No. 47530058 injection well (cyan triangle in Fig. 2c; orange bars in Fig. 2d) lies in approximately the same location as the maximum uplift.
The mechanism of the surface uplift caused by the CO2 injection is almost identical to the wastewater injection-induced uplift. Injected fluids, in this case, liquid supercritical fluid CO2, increases the pore pressure in the rocks (sandstones in Yates Formation for the CO2 EOR sites) and the release of the effective stress is followed by surface uplift26,27. The fluctuations in deformation after the injection was slowed down or stalled can be due to the collective effects of poroelastic compaction and viscoelastic delayed uplift in the formations surrounding the injected layer28,29. The proximity between maximum uplift and the No. 47530058 injection well, implies that the CO2 flooding in that particular well is more influential on the movement of ground surface than other surrounding wells (black triangles in Fig. 2c).
The high correlation between a large amount of uplift (~3cm) and CO2flooding during 2015 suggests that the instability of ground surface in the southwest of the North Ward Estes Field was induced by the pressurized injection of CO2 into the Yates formation. Contrary to the surface uplift in the vicinity of No. 47530058, no significant deformation has been detected on the other portions of the North Ward Estes Field. Differences in rock strength, porosity, compressibility, and permeability can play a role in the occurrence of deformation28. CO2 flooding has revitalized, and continues to enhance recovery of the mature oil fields of the Permian Basin, helping to produce significant volumes of oil without CO2 emission32. However, pressurized injection into a geologically unstable rock formation can destabilize the ground surface and risks the productivity of further oil operations35,36.
Dissolution of salt/limestone in Santa Rosa Spring
The Pecos County Water Improvement District No. 2 owns and operates a 2 km wide reservoir, known as the Imperial Reservoir (Fig. 3a), located about 6.4 km south of Grandfalls, Texas. Used for both irrigation of agricultural fields in Coyanosa, Texas and for recreational purposes, the Imperial Reservoir’s water is pumped from the Pecos River. In addition to the pumped Pecos River water, the reservoir also receives artesian spring water from the Santa Rosa Spring, 13 km southwest of Grandfalls, Texas in Pecos County, through narrow canals and channels.
Around the Santa Rosa Spring, hydrogen sulfide has been produced from multiple wells. However, the hydrogen production can hardly be directly connected to the rapid subsidence because all of the wells are located outside of the deforming zone that is centered on the Santa Rosa Spring. Hence, the hydrogen production should not have apparent impact on the observed subsidence.
Historically, a limestone cavern formed around Santa Rosa Spring, and the runoff water occasionally flows from and into the cavern37. Stratigraphical data for the area’s closest well, API No. 37137696 well (Fig. 3a), indicates Bone Springs Limestone formation is present at depth between 2,065 m and 2,911 m. However, the dissolution of this deep-seated limestone formation and the connection to the surface subsidence is not realistic as the extent of the subsidence area is less than 1.5 km (Fig. 3a). In addition, the dissolution rate of carbonate rocks like limestone is generally much smaller than that of the evaporite rocks, and a limestone cavern in a natural state forms very slowly (mm/yr)38,39. Therefore, such rapid subsidence rate (8~9 cm/yr) at Santa Rosa Spring is less likely caused by the natural dissolution of limestone.
Because of the nature of the rapidity in subsidence, we believe the most likely cause of the observed subsidence is the dissolution of the Salado formation in the depth of 300~450 m beneath Permian Basin. Investigations of groundwater conditions in Pecos County indicated that the highest salinity over the region was found at Santa Rosa Spring (7224 mg/l)40. In addition, it has been documented that the salinity over the Santa Rosa Spring increased by 4,894 mg/l from the 1940s to 198740. Therefore, we interpret the rapid subsidence in the Santa Rosa Spring area to be caused by the dissolution of salt deposits. Although the subsidence has not triggered the collapse of the surface, the continuous surface subsidence in the areas can be hazardous to water management facilities and/or nearby oil/gas wells.
Freshwater impoundment in abandoned wells
The region near Imperial, Texas (Fig. 1), has been troubled with the growing subsidence, ground fissures, and the emergence of sinking lakes41,42. Some abandoned water and oil wells were left unplugged and thus did not prevent freshwater impoundment through cracks in cement casing and/or the corroded steel pipes, and the freshwater impoundment is known to be the primary cause of rapid subsidence in the area41. However, prior to this study, subsidence near many abandoned wells has gone unnoticed42, and the Texas Department of Transportation is expected to spend millions of dollars to identify and plug the abandoned wells41,42. Our InSAR analysis has detected rapid subsidence around 7 km southwest of Imperial, Texas (Figs 1 and 3c). The region around Boehmer Lake (F and G in Fig. 3c) has sunk as much as 2~3 cm over the course of our InSAR acquisition period (2.5 years). Boehmer Lake did not exist before 2003 and the sinking ground surface led to the formation of the lake as a result of water arising from the subsurface, thus this is continued subsidence. Farm to Market (FM) road 1053 (near H, I in Fig. 3c) is sinking so fast that we could only compare pairs of satellite data within 12 days in order to maintain coherence of the InSAR image (inset in Fig. 3c). Therefore, using InSAR pairs with small (6 or 12 days) temporal baselines, we were able to measure the round-shaped (500 m in diameter) subsidence rate (~10 cm/yr) along FM 1053 road. Due to the safety concern, use of the road was suspended in August of 2016 and the realignment of FM 1053 was discussed by the state transportation agency41,42. A third nearby area of rapid subsidence (~10 cm/yr for 2.5 years) (near J, K in Fig. 3c) was observed near oil well API No. 37137310 (cyan triangle in Fig. 3c, near J and K). The subsidence pattern (650×350 m in dimension) is stretched NW-SE, aligning with two wells: API No. 37172505 and 37137310. Like the subsidence over the Santa Rosa Spring, vertical deformation measurements at points (F, G, H, I, J, K in Fig. 3c) show a strong linearity in time (Fig. 3d). Two points (F, G in Fig. 3c) in Boehmer Lake are experiencing 1.4 and 2.0 cm/yr subsidence. Points (H, I in Fig. 3c) near the outer edge of the deformation in FM 1053 road show the subsidence of 0.7 and 1.5 cm/yr, respectively. The areas near two oil wells are also undergoing subsidence of as much as 3.9 and 2.5 cm/yr, respectively. A few oil wells to the south of Imperial, Texas are currently active (i.e., No. 37137310 in Fig. 3c), with moderate production (less than 400 BBLs/month) for most of the time.
The observed linear subsidence relatively independent of oil/gas production and seasonal effects has the characteristics of ground subsidence (subsidence sinkhole) in karst terrain19. High salinity of channels along the Pecos River near Imperial, Texas and Boehmer Lake43,44 suggests that the surface and underground water interact with the subsurface salt deposit. The deforming area (Fig. 3c) is located in the Central Basin Platform close to the eastern Delaware Basin of the larger Permian Basin and is underlain by the Salado Formation in the depth of 300~500 m. Through unplugged abandoned wells, corroded pipes, or cracks in the casing, freshwater flows down and/or artisan water rises to the Salado formation, accelerating the dissolution of the evaporite, creating voids in the beds, and causing rapid subsidence on the surface17,39. Indeed, all three areas of subsidence are near wells. Boehmer Lake formed over an abandoned oil well (No. 37172656), which had stopped producing decades ago, and the subsidence along FM 1053 road is occurring near an orphan well (red triangle in Fig. 3c) that was identified as an inactive, non-compliant well by Texas’ petroleum regulatory agency (RRC)45. The oil production in No. 37137310 or related operations may influence the large rates of subsidence. However, the downward flow of freshwater into an unplugged oil well (i.e. No. 37172505) may play a more influential role in subsidence as the subsiding areas are all underlain by salt deposits. The dissolution of salt beds (evaporite) is typically more substantial than that of the carbonate rocks (limestone), and often exceeds ~10 cm/yr subsidence38,39. Expansion of the cavity and the migration of voids toward the surface can possibly result in the collapse of the surface into sinkholes. Therefore, movements around the roads and oil facilities to the southwest of Imperial, Texas should be thoroughly monitored to mitigate potential catastrophes.
Dissolution of the salt bed near the Wink Sinkholes
Ground subsidence is more widely recognized near two Wink sinkholes, which collapsed in 1980 (Wink Sink #1 in Fig. 3e) and 2002 (Wink Sink #2 in Fig. 3e)18,19. The sinkholes, 4 km northeast of Wink, Texas and 9.5 km southwest of Kermit, Texas (Fig. 1), lie in the Delaware Basin part of the larger Permian Basin. The Salado Formation is near a depth of ~500 m46 over this area. The oil and gas in the region are mostly produced from the Yates Formation underneath the Salado Formation19,46. Both Wink sinkholes collapsed because of downward freshwater seeping through unplugged boreholes and cracked cement casing in oil and water wells. The subsidence in the immediate vicinity of the collapsed sinkholes continues at a rate of ~3–4 cm/yr (Fig. 3e).

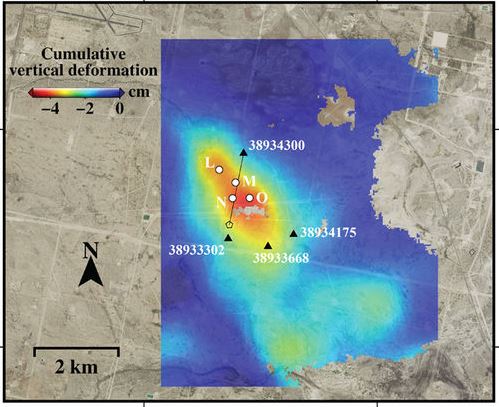

The most significant ongoing subsidence is occurring 1 km east of the Wink #2. There are two large subsidence bowls (Fig. 3e), and the maximum subsidence in the southern bowl (380 m by 280 m in dimension) exceeds 40 cm/yr. The large gradient of subsidence in a small region cannot be observed by C-band InSAR pairs with 24-days or longer. Accordingly, only 5 InSAR pairs with 6 or 12-days temporal baselines are used to calculate the high linear deformation rate here. The peak subsidence is located at the intersection of County roads 201 and 204, and there are no existing active wells around the region. Therefore, the rapid subsidence is likely induced by the freshwater impoundments from the nearby abandoned wells. During our field trip, we observed numerous recent ground fissures around the intersection of County roads 201 and 204. These growing fissures can allow the rainwater to swiftly flow down to the Salado formation and promote the dissolution of the salt layers. Because the oil and gas production in the area has been inactive for years, the mechanism for both bowls is believed to be the same. The access to the region surrounding Wink #1 and #2 has been restricted out of safety concerns, but County Road 201 continues to be used to transport oil and gas products. Based on the observed rapid subsidence, the use of County Road 201 should be proactively monitored for safety. Additionally, the effect of ongoing subsidence on the pipelines in the area needs to be reviewed as well.
Hydrocarbon production in Pecos and the associated seismic events
The Wolfbone field 9 km south of Pecos, Texas in Reeves County (Fig. 1) has been developed for oil and gas production since 2014. Compared to other oil wells in West Texas that produced hydrocarbon for decades, the wells (API No. 38934300, 38933302, 38933668, 38934175 in Fig. 4a) in the region are recent with significant production exceeding 10,000 BBLs (1 BBL ≈ 0.12 m3) starting in early 2015. The drilling depth of the wells is ~4 km below the surface, and most hydrocarbons are produced from the Bone Springs and Wolfcamp formations47, which lie in the depth of 2.3~3 km and 3~3.7 km, respectively.
Production from the wells has been enhanced by vertical and horizontal hydraulic fracturing of the sandstone and shale formation. Approximately 4.5 cm subsidence around four producing wells in the Wolfbone field can be observed from our InSAR analysis (Fig. 4a), while the horizontal deformation is negligible. From the time-series measurements in multiple points (Fig. 4b), the subsidence rate has been at a constant, relatively slow speed (1.5 cm/yr) from 2015 to 2016. However, the subsidence was accelerated from January to March 2017 and the amount of the two-month subsidence (O in Fig. 4b) for two months reached up to 1.5 cm (at a rate of ~9 cm/yr). Following the subsidence, the surface uplifted (Fig. 4b) with a maximum magnitude of ~0.5 cm between March and April 2017. We attribute the subsidence to the hydrocarbon production, as most of the subsidence is bounded by production wells in the deep formations28 and the extent of the subsidence area is consistent with a source depth of 2–4 km (Fig. 4a). Although the monthly hydrocarbon production exhibits variations, the detected ground subsidence is relatively linear in time. We can postulate that the formations in the subsiding areas behave viscously, different from other observed sites of wastewater injection and CO2flooding. The removal of a huge mass of oil from the subsurface creates the stress changes in the rock/soil layers, but the ground surface gradually responds to such stress changes in the stratigraphy containing abundant viscoelastic shale formations.
Although Pecos, Texas, is located in the geologically stable continental region without any seismic events before 2010s, there have been six small earthquakes in recent years (yellow stars in Fig. 4b). The magnitude of the earthquakes varies between M 1.8 and M 2.7, and all but two events occurred less than 15 km from the subsidence area. Both the timing of the April 2015 earthquake, shortly after the start of the massive increase in oil well production rates, as well as the latest changes in ground surface deformation coinciding the recent five earthquakes in 2017, suggest a close association among ground surface deformation, oil/gas production and seismic events, similar to those observed elsewhere3,22. The underlying mechanism to connect oil/and gas production and surface subsidence is that the extraction of oil or gas from underground decreases the pore pressure in formations, which in turn increases the effective stress, which might favor the slip of existing faults.
Hydraulic fracturing along a horizontal pipeline from a horizontal well (such as well No. 38934300) could be responsible for the lateral distribution of vertical displacement in the shale oil field. Moreover, the two-year deformation can accumulate stress on the basement faults near the deforming areas. Although the pre-existing faults in Pecos, Texas have not been documented, the surge in seismic events suggests that faults may exist in the bedrock. Ground subsidence can activate the fault(s)3,16,48, and the accelerated subsidence and subsequent uplift in early 2017 can be interpreted as the co-seismic deformation and the viscoelastic relaxation during the short-term post-seismic deformation as a result of the multiple earthquakes49. The focal depth of the earthquakes ranges between 3 and 5 km, just slightly below where the hydrocarbon was extracted. Unfortunately, due to the sparse number of seismic stations in Texas, the accuracy in the location of the seismicity can be on the order of 10 km50,51. However, the absence of any previously reported regional earthquakes near Pecos, Texas, a shallow focal depth around the producing zone, the proximity of ground deformation to the epicenter therefore suggests a causative link between hydrocarbon production and the sequence of earthquakes (induced seismicity).
Discussion
We have compiled multiple localized geohazards in West Texas (Table 1), most of which were induced by, or at least influenced by, human activities. The correlation between time-series vertical deformation and fluid injection/hydrocarbon production exhibits evident effects of human activities on the surface, but the modeling approach can also help explain the causal relationship. The inverse modeling with the observed cumulative vertical deformation (Fig. 5a) in the box outlined by a dashed rectangle (Fig. 2a) computes the best-fit model (Fig. 5b) with the least residual (Fig. 5c; root mean square (RMSE) misfit: 0.10 cm). The modeled result with a rectangular (3.5 km by 2.5 km) dislocation source at a depth of 1.63 km (known average injection depth) indicates that the peak uplift is located near the wastewater injection well (API No. 49533675). During the observation period of about 2.5 years, both wells (API No. 49533675 and 49530150 in Fig. 2a) had injected saltwater of 5,119,129 BBLs (≈610,408 m3) and 3,704,047 BBLs (≈442,623 m3), respectively (1,053,031 m3 in total). Our computed volume change at the source is about 790,183 ± 8,750 m3 and slightly lower than the total injected volume of saltwater. The difference between the two can be attributed to the diffusion of injected saltwater into the surrounding rocks without generating any measurable deformation. The comparable volume change that was calculated from our model reaffirms that the observed surface uplift was induced by disposing a massive volume of saltwater. Although modeling can shed light on revealing the causality of the ongoing ground deformation, we have to realize that models are non-unique and dependent on hydrogeological parameters of the study site. In most general cases where surface uplift and human activities are highly correlated (Fig. 2d), the comparative analysis presented in this report is sufficient for assessing the effect of human activities in West Texas.
Our observations in West Texas can be separated into three groups: i) surface uplift induced by fluid injection, ii) rapid subsidence in a karst terrain due to dissolution of underlying salt deposit, and iii) ground subsidence and seismicity induced by hydrocarbon production. The first category includes two geohazards: one west of Wink, Texas and another southwest of Monahans, Texas. Although both wastewater and CO2 injection for EOR are economically efficient to extract oil from reservoirs, the high pressure for raising hydrocarbon production and the increased fluids in the rocks can promote the surface uplift as much as 3~5 cm during an injection. Close correlation between the surface uplift and the injection fluid suggests a causal link between oil producing activities and ground instability.
The second geohazards category includes salt (and perhaps limestone) dissolution in Santa Rosa Spring, Grandfalls and Wink with rapid subsidence in a karst terrain showing the characteristics of a strong linearity regardless of other factors (groundwater, precipitation, temperature, hydrocarbon production). Therefore, the rapid subsidence, once promoted by the freshwater impoundment and the interaction with brine water, is not slowed down by the changes of external effects. In addition, while oil and gas production does not directly impact the subsidence, poor management of the oil and gas facilities, boreholes, and pipelines allows freshwater or brine to interact with Salado salt (and possibly limestone) formations. Their subsidence rate can readily exceed 5 cm/yr, and the subsidence could lead to a collapse at the surface (collapse sinkhole52).
Finally, the third geohazards category includes subsidence at the recently developed hydrocarbon sites in Pecos, Texas. Subsidence of ~4 cm in 2.5 years may not be significant on the ground surface, but the continuous subsidence can exert stress on the deep-seated formations and possibly reactivate undocumented faults near the producing zone. West Texas has experienced unprecedented increases of seismicity in last 5–6 years. Earthquakes are occurring in a geologically stable region and the temporal and spatial association with hydrocarbon production suggests that these earthquakes are induced16. Based on the accelerated subsidence in 2017, we can hypothesize that the increased number of seismic events is a consequence of the onset of massive hydrocarbon production and thereby ground subsidence after the increase of the effective stress. Contrary to the induced seismicity near the hydrocarbon production in Pecos, Texas, all other ground deformations identified in this study were not followed by seismic events. The ground surface undergoes significant subsidence up to 40 cm/yr (i.e. Wink sinkholes), suggesting that the basement faulting near the producing/deforming zone might not exist and the rapid subsidence can be supported by the underpinning rock formation. Another possibility is that the seismic network in West Texas is neither dense nor sensitive to the micro-earthquakes occurring around the deforming areas3,9. In that case, the small-magnitude seismic events could go undetected due to the current sparse placement of seismometers in the area.
Regardless of the occurrence of the induced seismicity, measuring the ground deformation from space in areas where the wastewater and CO2are injected, rocks are dissolving, or the massive hydrocarbons are produced is possible using satellite radar interferometry from new free-data satellites, as we demonstrated in our research. The ground deformation in West Texas is very responsive to anthropogenic activities with little time delay after their implementations were initiated. To avoid more severe geohazards in the future, consideration of such poroelastic movements in producing formations should be carefully heeded.
If we do not mitigate the possible geohazards with continuous monitoring of surface deformation, we can expect one or more possible outcomes: i) damage to infrastructures (roads, railroads, levees, dams), ii) environmental impacts (i.e. ground-water pollution), iii) risks to oil and gas pipelines (note: West Texas has one of the densest networks of oil and gas pipelines in the U.S.), iv) potential threat to residents in surrounding communities, v) economic costs in hydrocarbon productions (i.e. possible improper well managements and thereby ground deformation can lead to large spending by oil companies and governmental agencies to prevent additional damages), and vi) induced seismicity. Micro-seismicity may not result in the large drastic hazards, but the ground deformation (subsidence/uplift) itself poses more direct threat to industrial facilities, infrastructures, and residential areas.
Measuring deformation can assist stakeholders as they examine the safety of the oil and gas operations and make important decisions for securing facilities and people from potential larger catastrophic events. The Texas petroleum regulators have required the submission of historical seismic events in order for an injection/disposal well permit to be approved, but the additional, continuous monitoring of the ground deformation in oil producing areas (regardless of methods including conventional oil production, water flooding, CO2 flooding, or hydraulic fracturing) can provide crucial, detailed information for the safe operations of oil and gas productions and the sustainable growth of the energy industry.
Methods
Sentinel-1A/B imagery
Sentinel-1A/B, a constellation of two Synthetic Aperture Radar (SAR) satellites operated by the European Space Agency (ESA) within the Copernicus Program, represent the first satellite radar missions providing radar imagery freely to the public. Its radar sensor using interferometric wide swath (IW) mode as a background mode provides C-band (5.4 GHz in center frequency; 5.6 cm in wavelength) imagery with intermediate spatial resolution (20 (azimuth) x 5 (range) m) and dense temporal acquisitions with revisits of 6 days (over Europe, or 12 days outside Europe)53,54. For our study, Sentinel-1A/B imagery from November 2014 to April 2017 was been processed. To estimate the deformation in two directions (vertical and east-west), it was necessary to utilize the SAR images from ascending (path 78) and descending (path 85) tracks (Fig. 1), which have the respective heading angle (clockwise from north) of 347.23° and 192.75° with an incidence angle of ~33.8° in the image center. Adaptive multi-look factors were applied to all used SAR images to maintain appropriate spatial resolution in diagnosing the small-sized deformation phenomena.
Detection of deformation signal and estimation of 2D deformation with InSAR
Because Sentinel-1A/B acquires data with a swath of ~250 km, processing the large size of SAR scene for time-series measurements can be inefficient for detecting a small-sized deformation in West Texas. Moreover, our study area orientation from north to south, required merging of two or more frames. Filtering was applied to interferograms for improving InSAR coherence and also to permit retrieval of the localized deformations in an oil field feasible. To detect numerous deformation signals without losing much spatial resolution, we adopted a stepwise approach of InSAR analysis from a broad to fine scale. In the first run, all available Sentinel-1 images were coregistered based on the SAR image acquired on the first acquisition date. The precise coregistration of Sentinel-1 for avoiding the discontinuous phases between bursts and improving coherence was critical. The process of enhanced spectral diversity (ESD) was iterated until the coregistration precision of azimuth pixel became better than 0.001 pixel55, and the pre-resampled SAR images closest to newly-resampled SAR image can aid rapid and more accurate coregistration. All available interferograms with maximum temporal and spatial baselines of 1 year and 200 m, respectively, were generated from the resampled SAR images and were thoroughly examined through visual inspection. Upon discovering the localized signals in our study area, we cropped the interferograms around those deformations. The adaptive multi-look filtering was then applied to each interferogram to maintain high spatial resolution (close to the original resolution of Sentinel-1A/B).
We employed the multi-dimensional small baseline subset (MSBAS) method56,57,58, after removing topographic signatures from interferograms and completing phase unwrapping to estimate the vertical and the horizontal (east-west) deformation from Sentinel-1A/B with two different radar geometries of ascending and descending tracks59. Because most SAR sensors are adopting a near-polar orbit and a single (right) look direction, the deformation in north-south direction cannot be resolved without multi-aperture interferometry, along-track interferometry, or offset tracking that is not suitable for mapping small-sized signals. The governing matrix for calculating 2D time-series deformation from multiple tracks is:
where R, λ, θ and ϕ are the slant range from the satellite to the target (unit: m), the radar wavelength (~0.056 m), the azimuth angle, and the incidence angle, respectively. When M k and N k are the numbers of interferograms and SAR acquisition dates from kth SAR datasets (assuming that we have K (here K becomes 2 because we used ascending and descending track) SAR sets), respectively, A(unit:time;dimension:∑Kk=1Mk×(∑Kk=1Nk−1))(unit:time;dimension:∑k=1KMk×(∑k=1KNk−1)) is a matrix constructed from the time interval between consecutive SAR acquisitions, β is a regularization parameter, I (dimension: (2(∑Kk=1Nk−1)+1))×(2(∑Kk=1Nk−1)+1))(∑k=1KNk−1)+1))×(2(∑k=1KNk−1)+1)) is an identity matrix, V Eand V v (each has dimensions of (∑Kk=1Nk−1)×1)(∑k=1KNk−1)×1) are the east-west and vertical components (unit: m/time) of the ground deformation rate vector during each time interval, B p (unit: m; dimension: ∑Kk=1Mk×1∑k=1KMk×1) is the perpendicular baseline, Δh is the topography error (unit: m; not significant in a flat region), Φ (dimension: ∑Kk=1Mk×1∑k=1KMk×1) is the observed (unwrapped) interferometric phase (unit: radian), and 0 is a zero vector with a dimension of (2(∑Kk=1Nk−1)+1)×1(2(∑k=1KNk−1)+1)×119,56 (thus, a left matrix, the unknown vector, and a right vector from (1) have a dimension of (∑Kk=1Mk+2(∑Kk=1Nk−1)+1)(∑k=1KMk+2(∑k=1KNk−1)+1)×(2(∑Kk=1Nk−1)+1))×(2(∑k=1KNk−1)+1)), (2(∑Kk=1Nk−1)+1)×12(∑k=1KNk−1)+1)×1, and (∑Kk=1Mk+2(∑Kk=1Nk−1)+1)×1∑k=1KMk+2(∑k=1KNk−1)+1)×1). The unknown parameters (V E , V v ) were calculated by solving the matrix (1) via singular value decomposition (SVD) with minimum-norm constraints56. All used InSAR pairs were connected to each other (full-rank matrix A) due to high coherence in our study area, meaning that we have more observations than unknowns (V E , V v , Δh). Atmospheric artifacts are not removed separately, because the multi-temporal InSAR using only less-contaminated interferograms could limit the effects of those noises and small areas with ~200–300 m in dimension are less influenced by a large variation of atmosphere. Due to the extreme summer heat in West Texas, the distribution of water vapor in the atmosphere can be still problematic particularly for July and August scenes. However, the spatio-temporal filtering applied to time-series measurements for reducing the effects of water vapor and residual noises worked nicely allowing us to successfully mitigate the influence of those noise and error sources.
However, when the gradient of deformation was large, exceeding 5~10 cm/yr, the interferograms from 24 or more temporal intervals could not maintain coherence. In that case, only the interferograms with 6 or 12-day temporal baselines were used to estimate such a high deformation rate (i.e. rapid subsidence near Wink sinkholes and Imperial, Texas). In West Texas, before mid-2016, most interferograms had 24 day intervals, and most of them were not suitable over the rapidly deforming regions. Therefore, for a large gradient deformation, the limited number of interferograms with short temporal baselines were used by applying a stacking method60 that is particularly useful for reducing temporally-uncorrelated signals (atmospheric artifacts, noise) and computing the deformation rate (cm/yr). The peak subsidence near the Wink sinkholes cannot be observed by any 24-day interval Sentinel-1A/B interferograms due to the loss of coherence, but the applied stacking method with 6 or 12-day interval interferograms allows for locating and calculating the maximum subsidence rate in the intersection of County roads 201 and 204.
Hydrocarbon production and injection volumes
To characterize the ground deformation in West Texas, we performed comparative analysis with information from hydrocarbon production and injection volumes. Records relating to oil/gas production and wastewater injection were collected from the Texas RRC, which is the responsible regulatory authority of the petroleum industry and pipeline safety in Texas. In addition, drillinginfoTM also provided additional information on geological formations in the locations of rapid subsidence. Injection wells, wastewater (generally saltwater) or carbon dioxide (CO2) can be injected into an oil-producing unit in the underground for boosting oil and gas production. Most wells used for hydrocarbon production can produce oil and natural gas together, but natural gas, often called casinghead gas, is regarded as a byproduct of these oil wells. Therefore, only the oil production in the wells was considered in our analysis.
Modeling surface uplift due to wastewater injection
We modeled the cumulative surface uplift to estimate the volume change in the subsurface and assess the relationship between the ground deformation and human activities (here wastewater injection). We used Okada formulation61 for motions in a homogeneous elastic half space, because ground deformation presented in our study shows high elastic response to the stress change. The source consists of a planar array of opening cracks at a fixed depth of the wastewater injection. First, we subsampled the cumulative vertical deformation using quadtree downsampling algorithm62 for reducing the computational burden in modeling while preserving the statistically significant part of the deformation signal63. The best-fitting models were searched over the grid and the best fitting parameters were obtained by minimizing the root mean square (RMS) misfit from the residuals (the observation minus the model)64,65.
Additional information
Publisher’s note: Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
References
-
Hyndman, D. & Hyndman, D. Natural Hazards and Disasters(Brooks Cole, 2016).
-
Yuan, H. & Romanowicz, B. Lithospheric layering in the North American craton. Nature. 466, 1063–1069 (2010).
- McGarr, A. et al. Coping with earthquakes induced by fluid injection. Science. 347, 830–831 (2015).
- Qu, F. et al. Mapping ground deformation over Houston-Galveston, Texas using multi-temporal InSAR. Remote Sens. Environ. 169, 290–306 (2015).
- Buckley, S. M., Rosen, P. A., Hensley, S. & Tapley, B. D. Land subsidence in Houston, Texas, measured by radar interferometry and constrained by extensometers. J. Geophys. Res. Solid Earth.108, B11 (2003).
- Jankowski, K. L., Törnqvist, T. E. & Fernandes, A. M. Vulnerability of Louisiana’s coastal wetlands to present-day rates of relative sea-level rise. Nat. Commun. 8, 14792, https://doi.org/10.1038/ncomms14792 (2017).
- Bourne, J. Louisiana’s vanishing wetlands: Going, going. Science289, 1860–1863 (2000).
- Blum, M. D. & Roberts, H. H. Drowning of the Mississippi Delta due to insufficient sediment supply and global sea-level rise. Nat. Geosci. 2, 488–491 (2009).
- McGarr, A., Simpson, D. & Seeber, L. Case histories of induced and triggered seismicity. in International Handbook of Earthquake and Engineering Seismology 81A, 647–661 (2002).
- Galloway, D. L. et al. Detection of aquifer system compaction and land subsidence using interferometric synthetic aperture radar, Antelope Valley, Mojave Desert, California. Water Resour. Res. 34, 2573–2585 (1998).
- Amelung, F., Galloway, D. L., Bell, J. W., Zebker, H. A. & Laczniak, R. K. Sensing the ups and downs of Las Vegas: InSAR reveals structural control of land subsidence and aquifer-system deformation. Geology 27, 0403–486 (199).
- Yang, Q. et al. InSAR monitoring of ground deformation due to CO2 injection at an enhanced oil recovery site, West Texas. Int. J. Greenh. Gas Control 41, 20–28 (2015).
- Sellards, E. H., Adkins, W. S., & Plummer, F. B. The geology of Texas: Volume I Stratigraphy. The University of Texas Bulletin3232 (1932).
- Johnson, K. S. Dissolution of salt on the east flank of the Permian Basin in the southwestern USA. J. Hydrol. 54, 75–93 (1981).
- Hornbach, M. J. et al. Casual factors for seismicity near Azle, Texas. Nat. Commun. 6, 6728, https://doi.org/10.1038/ncomms7728 (2015).
- Frohlich, C. et al. A historical review of induced earthquakes in Texas. Seismol. Res. Lett. 87, 1–17 (2016).
- Johnson, K. S. Subsidence hazards due to evaporite dissolution in the United States. Environ. Geol. 48, 395–409 (2005).
- Paine, J. G., Buckley, S. M., Collins, E. W. & Wilson, C. R. Assessing collapse risk in evaporite sinkhole-prone areas using microgravimetry and radar interferometry. J. Environ. Eng. Geophys. 17, 75–87 (2012).
- Kim, J.-W., Lu, Z. & Degrandpre, K. Ongoing deformation of sinkholes in Wink, Texas, observed by time-series Sentinel-1A SAR interferometry (preliminary results). Remote Sens. 8, 313 (2016).
- Fielding, E. J., Blom, R. G. & Goldstein, R. M. Rapid subsidence over oil fields measured by SAR interferometry. Geophys. Res. Lett.25, 3215–3218 (1998).
- Ketellaar, V. B. H. Subsidence due to hydrocarbon production in the Netherlands, in Satellite Radar Interferometry: Subsidence monitoring techniques, (Springer, 2009).
- Ellsworth, W. L. Injection-induced earthquakes. Science 341, https://doi.org/10.1126/science.1225942 (2013).
- Lu, Z. & Dzurisin, D. InSAR Imaging of Aleutian Volcanoes: Monitoring a Volcanic Arc from Space (Springer, 2014).
- Hornbach, M. J. et al. Ellenburger wastewater injection and seismicity in North Texas. Phys. Earth Planet. Inter. 261, 54–68 (2016).
- Dutton, S. P., Flanders, W. A. & Barton, M. D. Reservoir characterization of a Permian deep-water sandstone, East Ford field, Delaware basin, Texas. AAPG Bull. 87, 609–627 (2003).
- Terzaghi, K. Theoretical Soil Mechanics (John Wiley and Sons, 1943).
- Teatini, P., Gambolati, G., Ferronato, M., Settari, A. T. & Walters, D. Land uplift due to subsurface fluid injection. J. Geodyn. 51, 1–16 (2011).
- Zoback, M. D. Reservoir Geomechanics (Cambridge University Press, 2010).
-
Chang, C., Mallman, E. & Zoback, M. Time-dependent subsidence associated with drainage-induced compaction in Gulf of Mexico shales bounding a severely depleted gas reservoir. AAPG Bull. 98, 1145–1159 (2014).
- Perera, M. S. A. et al. A review of CO2-enhanced oil recovery with a simulated sensitivity analysis. Energies 9, 481 (2016).
- Blunt, M., Fayers, F. J. & Orr, F. M. Jr. Carbon dioxide in enhanced oil recovery. Energy Convers. Manage. 34, 1197–1204 (1993).
- Alvarado, V. & Manrique, E. Enhanced oil recovery: An update review. Energies 3, 1529–1575 (2010).
- Shelton, J. L. et al. Determining CO2 storage potential during miscible CO2 enhanced oil recovery: Noble gas and stable isotope tracers. Int. J. Greenh. Gas Control 51, 239–253 (2016).
- Winzinger, R. et al. Design of a major CO2 flood, North Ward Estes Field, Ward County, Texas. SPE Reservoir Eng. 6, 11–16 (1991).
- Vasco, D. W. et al. Satellite-based measurements of surface deformation reveal fluid flow associated with the geological storage of carbon dioxide. Geophys. Res. Lett. 37, L03303 (2010).
- Samsonov, S., Czarnogorska, M. & White, D. Satellite interferometry for high-precision detection of ground deformation at a carbon dioxide storage site. Int. J. Greenh. Gas Control 42, 188–199 (2015).
- Brune, G. Major and historical springs of Texas. Texas Water Development Board Report 189 (1975).
- Waltham, T., Bell, F., & Culshaw, M. Sinkholes and Subsidence(Springer, 2005).
- Warren, J. K. Evaporites (Springer, 2016).
- Small, T.A. & Ozuna, G. Ground-water conditions in Pecos County, Texas, 1987, U.S. Geological Survey Water-Resources Investigations Report 92–4190 (1993).
- Malewitz, J. Abandoned Texas oil wells seen as “ticking time bombs” of contamination. The Texas Tribune. Online news article at https://www.texastribune.org/2016/12/21/texas-abandoned-oil-wells-seen-ticking-time-bombs-/ (2016).
- Malewitz, J. In West Texas, abandoned well sinks land, sucks tax dollars. The Texas Tribune. Online news article at https://www.texastribune.org/2017/01/22/west-texas-abandoned-well-sinks-land-sucks-tax-dol/ (2017).
- Jensen, R., Hatler, W., Mecke, M., & Hart, C. The influences of human activities on the waters of the Pecos Basin of Texas: A brief overview. Texas Water Resources Institute Report SR-2006-03 (2006).
- Miyamoto, S., Anand, S., & Hatler, W. Hydrology, salinity, and salinity control possibilities of the Middle Pecos River: A reconnaissance report. Texas Water Resources Institute ReportTR-2008-315 (2008).
- Davies, R. J. et al. Oil and gas wells and their integrity: Implications for shale and unconventional resource exploitation. Mar. Pet. Geol. 56, 239–254 (2014).
- Johnson, K. S. Subsidence hazards due to evaporite dissolution in the United States. Environ. Geol. 48, 395–409 (2005).
- Gaswirth, S. B. Assessment of continuous oil resources in the Wolfcamp shale of the Midland Basin, Permian Basin Province, Texas, 2016. U.S. Geological Survey Open File-Report 2017–1013 (2017).
- Davies, R., Foulger, G., Bindley, A. & Styles, P. Induced seismicity and hydraulic fracturing for the recovery of hydrocarbons. Mar. Petrol. Geol. 45, 171–185 (2013).
- Sun, T. & Wang, K. Viscoelastic relaxation following subduction earthquakes and its effects on afterslip determination. J. Geophys. Res. Solid Earth. 120, 1329–1344 (2015).
- National Research Council. Induced Seismicity Potential in Energy Technologies (The National Academies Press, 2013).
- Frohlich, C., Hayward, C., Stump, B. & Potter, E. The Dallas-Fort Worth earthquake sequence: October 2008 through May 2009. Bull. Seismol. Soc. Am. 101, 327–340 (2011).
- Gutiérrez, F., Parise, M., De Waele, K. & Jourde, H. A review on natural and human-induced geohazards and impacts in karst. Earth Sci. Rev. 138, 61–88 (2014).
- De Zan, F. & Guarnieri, A. M. TOPSAR: Terrain observation by progressive scans. IEEE Trans. Geosci. Remote Sens. 44, 2352–2360 (2006).
- European Space Agency. Sentinel-1 User Handbook (European Space Agency, 2013).
- Prats-Iraola, P., Scheiber, R., Marotti, L., Wollstadt, S. & Reigber, A. TOPS interferometry with TerraSAR-X. IEEE Trans. Geosci. Remote Sens. 50, 3179–3188 (2012).
- Berardino, P., Fornaro, G., Lanari, R. & Sansosti, E. A new algorithm for surface deformation monitoring based on small baseline differential SAR interferograms. IEEE Trans. Geosci. Remote Sens. 40, 2375–2383 (2002).
- Samsonov, S. & d’Oreye, N. Multidimensional time-series analysis of ground deformation from multiple InSAR data sets applied to Virunga volcanic province. Geophys. J. Int. 191, 1095–1108 (2012).
- Hooper, A. A multi‐temporal InSAR method incorporating both persistent scatterer and small baseline approaches. Geophys. Res. Lett. 35 (2008).
- Wright, T. J., Parsons, B. E., & Lu, Z. Toward mapping surface deformation in three dimensions using InSAR. Geophys. Res. Lett. 31 (2004).
- Sandwell, D. T. & Price, E. J. Phase gradient approach to stacking interferograms. J. Geophys. Res. Solid Earth. 103, 30183–30204 (1998).
- Okada, Y. Subsurface deformation due to shear and tensile faults in a half-space. Bull. Seismol. Soc. Am. 92, 1018–1040 (1985).
- Jónsson, S., Zebker, H., Segall, P. & Amelung, F. Fault slip distribution of the 1999 Mw 7.1 Hector Mine, California, earthquake, estimated from satellite radar and GPS measurements. Bull. Seismol. Soc. Am. 92, 1377–1389 (2002).
- Samsonov, S. V., González, P. J., Tiampo, K. F. & D’Oreye, N. Modeling of fast ground subsidence observed in southern Saskatchewan (Canada) during 2008–2011. Nat. Hazards Earth Syst. Sci. 14, 247–257 (2014).
- Lu, Z. & Wicks, C. Characterizing 6 August 2007 Crandall Canyon mine collapse from ALOS PALSAR InSAR. Geomat., Nat. Haz. Risk.1, 85–93 (2010).
- Fialko, Y. Probing the mechanical properties of seismically active crust with space geodesy: Study of the coseismic deformation due to the 1992 M w 7.3 Landers (southern California) earthquake. J. Geophys. Res. Solid Earth. 109 (2004).
Acknowledgements
All Sentinel data were provided by the European Space Agency (ESA)’s Copernicus Programme via Alaska Satellite Facility (ASF) Distributed Active Archive Center (DAAC) and processed through high-performance computing utilizing SMU’s supercomputer (ManeFrame). This research was financially supported by the NASA Earth and Surface Interior Program (NNX16AL10G) and the Shuler-Foscue Endowment at Southern Methodist University. Comments from Robert Gregory and Cathy Chickering Pace, three anonymous reviewers, and editorial board members improved the manuscript. Most geocoded images are drawn by Generic Mapping Tools (GMT) 5.2.2_r15292 available at http://gmt.soest.hawaii.edu/projects/gmt/wiki/Download. The National Agriculture Imagery Program (NAIP) imagery used as a background in the figures depicting ground deformation was accessed via the Geospatial Data Gateway https://datagateway.nrcs.usda.govprovided by United States Department of Agriculture (USDA).
